Stainless Steel Screen Pipe

Stainless steel screen pipe is a precision filtration pipe with V-shaped slots or perforations on its wall, combining solid-liquid separation with structural support. Manufactured from corrosion-resistant grades like 304 and 316L, it effectively filters sand and impurities while allowing target fluids to pass smoothly. The wedge-wire design features non-clogging Vee-shaped openings and up to 60% open area for high flow rates and low pressure drop. Widely used in oil & gas, water wells, and chemical processing, it ensures durability in harsh environments with excellent resistance to corrosion, abrasion, and high temperatures.

Inquire

Product Information

Application：

Stainless steel screen pipes are critical filtration components in industries requiring precise solid control and corrosion resistance.

In the Oil & Gas Extraction sector, these pipes are lowered into wellbores to prevent formation sand from entering the extraction system, avoiding equipment wear, pump damage, and wellbore blockage. The V-shaped wedge-wire slots allow oil and gas to flow freely while intercepting sand particles, ensuring stable production and extending service life.

In Water Well Drilling, screen pipes are widely used for groundwater extraction from deep and shallow wells. They filter sand and impurities from underground layers, improve water quality, and support the well wall to prevent collapse. The high open area (up to 60%) reduces water entry velocity, minimizing sand intrusion under high pressure and lowering pump abrasion.

Beyond these, the Mining and Mineral Processing industry utilizes screen pipes for tailings treatment and slurry filtration, separating solid particles from mineral slurries. In Wastewater Treatment and Seawater Desalination, they intercept suspended impurities and large particles (sand, shells) to protect downstream equipment and reverse osmosis membranes. The Chemical and Petrochemical sector relies on them for filtering corrosive fluids, while the Food and Beverage and Pharmaceutical industries use sanitary-grade screen pipes for liquid filtration requiring high purity and easy cleaning.

Compared to traditional carbon steel screens, stainless steel screen pipes offer superior corrosion resistance (especially 316L with molybdenum addition), longer service life, and reduced maintenance costs in saline, acidic, and high-temperature environments.

Specification:

SPECIFICATION STANDARD(STEEL PIPE)
Normal Diameter		OD(MM)	WALL THICKMESS(MM)
Normal Diameter		OD(MM)	ANSI B36.10M						ANSI B36.19M
A(MM)	B(INCH)	ASME	SCH5/5S	SCH10S	SCH10	SCH20	SCH30	STD	SCH40	SCH40S	SCH60	XS	SCH80	SCH80S	SCH100	SCH120	SCH140	SCH160	XXS
6	1/8"	10.29		1.24	1.24		1.45	1.73	1.73	1.73		2.41	2.41	2.41
8	1/4"	13.72		1.65	1.65		1.85	2.24	2.24	2.24		3.02	3.02	3.02
10	3/8"	17.14		1.65	1.65		1.85	2.31	2.31	2.31		3.2	3.2	3.2
15	1/2"	21.34	1.65	2.11	2.11		2.41	2.77	2.77	2.77		3.73	3.73	3.73				4.78	7.47
20	3/4"	26.67	1.65	2.11	2.11		2.41	2.87	2.87	2.87		3.91	3.91	3.91				5.56	7.82
25	1"	33.40	1.65	2.77	2.77		2.9	3.38	3.38	3.38		4.55	4.55	4.55				6.35	9.09
32	1.1/4"	42.16	1.65	2.77	2.77		2.97	3.56	3.56	3.56		4.85	4.85	4.85				6.35	9.7
40	1.1/2"	48.26	1.65	2.77	2.77		3.18	3.68	3.68	3.68		5.08	5.08	5.08				7.14	10.15
50	2"	60.32	1.65	2.77	2.77		3.18	3.91	3.91	3.91		5.54	5.54	5.54				8.74	11.07
65	2.1/2"	73.02	2.11	3.05	3.05		4.78	5.16	5.16	5.16		7.01	7.01	7.01				9.53	14.02
80	3"	88.90	2.11	3.05	3.05		4.78	5.49	5.49	5.49		7.62	7.62	7.62				11.13	15.25
90	3.1/2"	101.60	2.11	3.05	3.05		4.78	5.74	5.74	5.74		8.08	8.08	8.08
100	4"	114.30	2.11	3.05	3.05		4.78	6.02	6.02	6.02		8.56	8.56	8.56		11.13		13.49	17.12
125	5"	141.30	2.77	3.40	3.40			6.55	6.55	6.55		9.53	9.53	9.53		12.7		15.88	19.05
150	6"	168.28	2.77	3.40	3.40			7.11	7.11	7.11		10.97	10.97	10.97		14.27		18.26	21.95
200	8"	219.08	2.77	3.76	3.76	6.35	7.04	8.18	8.18	8.18	10.31	12.7	12.7	12.7	15.09	18.26	20.62	23.01	22.23
250	10"	273.05	3.40	4.19	4.19	6.35	7.8	9.27	9.27	9.27	12.7	12.7	15.09	12.7	18.26	21.44	25.4	28.58	25.4
300	12"	323.85	3.96	4.57	4.57	6.35	8.38	9.53	10.31	9.53	14.27	12.7	17.48	12.7	21.44	25.4	28.58	33.32	25.4
350	14"	355.60	3.96	4.78	6.35	7.92	9.53	9.53	11.13	9.53	15.09	12.7	19.05	12.7	23.83	27.79	31.75	35.71
400	16"	406.40	4.19	4.78	6.35	7.92	9.53	9.53	12.7	9.53	16.66	12.7	21.44	12.7	26.19	30.96	36.53	40.49
450	18"	457.20	4.19	4.78	6.35	7.92	11.13	9.53	14.27	9.53	19.05	12.7	23.83	12.7	29.36	34.93	39.67	45.24
500	20"	508.00	4.78	5.54	6.35	9.53	12.7	9.53	15.09	9.53	20.62	12.7	26.19	12.7	32.54	38.1	44.45	50.01
550	22"	558.80	4.78	5.54	6.35	9.53	12.7	9.53			22.23	12.7	28.58		34.93	41.28	47.63	53.98
600	24"	609.60	5.54	6.35	6.35	9.53	14.27	9.53	17.48	9.53	24.61	12.7	30.96	12.7	38.89	46.02	52.37	59.54
650	26"	660.40			7.92	12.7		9.53				12.7
700	28"	711.20			7.92	12.7	15.88	9.53				12.7
750	30"	762.00	6.35		7.92	12.7	15.88	9.53				12.7
800	32"	812.00			7.92	12.7	15.88	9.53	17.48			12.7
850	34"	863.60			7.92	12.7	15.88	9.53	17.48			12.7
900	36"	914.40			7.92	12.7	15.88	9.53	19.05			12.7

Standard：

Classification	Main Products	Chemical Composition (Typical, %)	Mechanical Properties (Typical)
Austenitic	Wedge-wire screen, Slotted liner, Perforated pipe	304: Cr 18-20, Ni 8-10.5 316L: Cr 16-18, Ni 10-14 Mo 2-3	Tensile: ≥515 MPa Yield: ≥205 MPa; Elongation: ≥40%
Austenitic	Screen pipe for marine/chemical service	304L: C ≤0.03 316H: Higher C for high-temp 310S: Cr 24-26, Ni 19-22	Tensile: ≥515-580 MPa Suitable for high-temp and high-corrosion conditions
Duplex	Heavy-duty screen pipe for sour service	2205: Cr 22-23, Ni 4.5-6.5, Mo 3-3.5, N 0.14-0.2	Tensile: ≥690 MPa Yield: ≥450 MPa; Elongation: ≥25% PREN 34-36
Ferritic	Low-cost screen pipe for mild conditions	430: Cr 16-18	Lower corrosion resistance, suitable for freshwater and non-corrosive applications

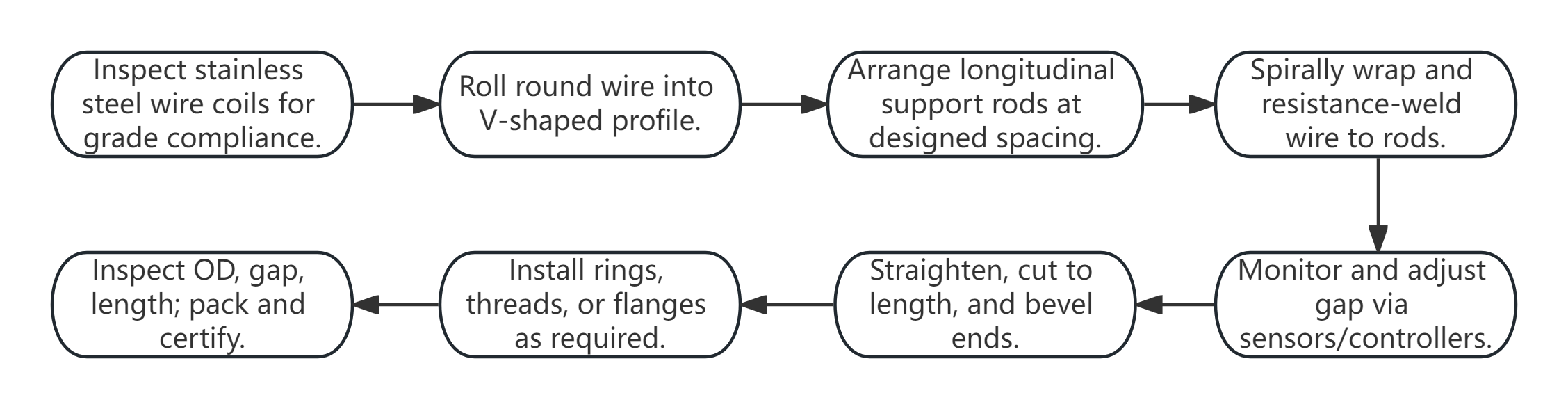

Process：
