Stainless Steel Seamless Pipe
- Our Stainless Steel Seamless Pipes are manufactured from premium stainless steel materials, providing excellent corrosion resistance, high strength, and durability. Ideal for diverse industrial applications, these pipes offer superior surface finish and precise dimensions without welding seams, ensuring reliable performance in demanding environments. Available in various sizes and grades to meet different standards, they are widely used in petrochemical, food processing, power generation, and construction industries.
Application:
Stainless Steel Seamless Pipes are critical components in many industrial applications due to their excellent mechanical properties and corrosion resistance. Their seamless construction ensures no weld seam, which greatly enhances the strength and reliability of the pipes, especially in high-pressure and high-temperature environments.
In the petrochemical industry, these pipes are used for transporting chemicals and gases that require resistance to corrosion and pressure. The oil and gas sector relies heavily on seamless pipes for drilling operations, pipeline construction, and refinery installations. Their ability to withstand harsh environmental conditions and aggressive media makes them indispensable in these fields.
In power plants, seamless stainless steel pipes cater to both thermal and nuclear power generation needs, conveying steam, water, and other fluids safely and efficiently. The seamless design minimizes failure risks under thermal stress and pressure fluctuations.
The food and beverage industry demands pipes with hygienic surface finishes and corrosion resistance to maintain purity and safety standards during production and transportation. Seamless stainless steel pipes meet these requirements perfectly because they do not harbor bacteria and are easy to clean.
In construction and architectural applications, these pipes are used for both structural frameworks and aesthetic design elements due to their strength, durability, and attractive appearance. Their resistance to weathering and oxidation prolongs the lifespan of buildings and infrastructure.
Other industries such as pharmaceuticals, automotive, and shipbuilding also benefit from stainless steel seamless pipes, as they offer customized grades and sizes to fit various process requirements. Overall, the versatility and durability of stainless steel seamless pipes make them essential across a wide range of sectors.
Specification:
| SPECIFICATION STANDARD(STEEL PIPE) | |||||||||||||||||||
| Normal Diameter | OD(MM) | WALL THICKMESS(MM) | |||||||||||||||||
| ANSI B36.10M | ANSI B36.19M | ||||||||||||||||||
| A(MM) | B(INCH) | ASME | SCH5/5S | SCH10S | SCH10 | SCH20 | SCH30 | STD | SCH40 | SCH40S | SCH60 | XS | SCH80 | SCH80S | SCH100 | SCH120 | SCH140 | SCH160 | XXS |
| 6 | 1/8" | 10.29 | 1.24 | 1.24 | 1.45 | 1.73 | 1.73 | 1.73 | 2.41 | 2.41 | 2.41 | ||||||||
| 8 | 1/4" | 13.72 | 1.65 | 1.65 | 1.85 | 2.24 | 2.24 | 2.24 | 3.02 | 3.02 | 3.02 | ||||||||
| 10 | 3/8" | 17.14 | 1.65 | 1.65 | 1.85 | 2.31 | 2.31 | 2.31 | 3.2 | 3.2 | 3.2 | ||||||||
| 15 | 1/2" | 21.34 | 1.65 | 2.11 | 2.11 | 2.41 | 2.77 | 2.77 | 2.77 | 3.73 | 3.73 | 3.73 | 4.78 | 7.47 | |||||
| 20 | 3/4" | 26.67 | 1.65 | 2.11 | 2.11 | 2.41 | 2.87 | 2.87 | 2.87 | 3.91 | 3.91 | 3.91 | 5.56 | 7.82 | |||||
| 25 | 1" | 33.40 | 1.65 | 2.77 | 2.77 | 2.9 | 3.38 | 3.38 | 3.38 | 4.55 | 4.55 | 4.55 | 6.35 | 9.09 | |||||
| 32 | 1.1/4" | 42.16 | 1.65 | 2.77 | 2.77 | 2.97 | 3.56 | 3.56 | 3.56 | 4.85 | 4.85 | 4.85 | 6.35 | 9.7 | |||||
| 40 | 1.1/2" | 48.26 | 1.65 | 2.77 | 2.77 | 3.18 | 3.68 | 3.68 | 3.68 | 5.08 | 5.08 | 5.08 | 7.14 | 10.15 | |||||
| 50 | 2" | 60.32 | 1.65 | 2.77 | 2.77 | 3.18 | 3.91 | 3.91 | 3.91 | 5.54 | 5.54 | 5.54 | 8.74 | 11.07 | |||||
| 65 | 2.1/2" | 73.02 | 2.11 | 3.05 | 3.05 | 4.78 | 5.16 | 5.16 | 5.16 | 7.01 | 7.01 | 7.01 | 9.53 | 14.02 | |||||
| 80 | 3" | 88.90 | 2.11 | 3.05 | 3.05 | 4.78 | 5.49 | 5.49 | 5.49 | 7.62 | 7.62 | 7.62 | 11.13 | 15.25 | |||||
| 90 | 3.1/2" | 101.60 | 2.11 | 3.05 | 3.05 | 4.78 | 5.74 | 5.74 | 5.74 | 8.08 | 8.08 | 8.08 | |||||||
| 100 | 4" | 114.30 | 2.11 | 3.05 | 3.05 | 4.78 | 6.02 | 6.02 | 6.02 | 8.56 | 8.56 | 8.56 | 11.13 | 13.49 | 17.12 | ||||
| 125 | 5" | 141.30 | 2.77 | 3.40 | 3.40 | 6.55 | 6.55 | 6.55 | 9.53 | 9.53 | 9.53 | 12.7 | 15.88 | 19.05 | |||||
| 150 | 6" | 168.28 | 2.77 | 3.40 | 3.40 | 7.11 | 7.11 | 7.11 | 10.97 | 10.97 | 10.97 | 14.27 | 18.26 | 21.95 | |||||
| 200 | 8" | 219.08 | 2.77 | 3.76 | 3.76 | 6.35 | 7.04 | 8.18 | 8.18 | 8.18 | 10.31 | 12.7 | 12.7 | 12.7 | 15.09 | 18.26 | 20.62 | 23.01 | 22.23 |
| 250 | 10" | 273.05 | 3.40 | 4.19 | 4.19 | 6.35 | 7.8 | 9.27 | 9.27 | 9.27 | 12.7 | 12.7 | 15.09 | 12.7 | 18.26 | 21.44 | 25.4 | 28.58 | 25.4 |
| 300 | 12" | 323.85 | 3.96 | 4.57 | 4.57 | 6.35 | 8.38 | 9.53 | 10.31 | 9.53 | 14.27 | 12.7 | 17.48 | 12.7 | 21.44 | 25.4 | 28.58 | 33.32 | 25.4 |
| 350 | 14" | 355.60 | 3.96 | 4.78 | 6.35 | 7.92 | 9.53 | 9.53 | 11.13 | 9.53 | 15.09 | 12.7 | 19.05 | 12.7 | 23.83 | 27.79 | 31.75 | 35.71 | |
| 400 | 16" | 406.40 | 4.19 | 4.78 | 6.35 | 7.92 | 9.53 | 9.53 | 12.7 | 9.53 | 16.66 | 12.7 | 21.44 | 12.7 | 26.19 | 30.96 | 36.53 | 40.49 | |
| 450 | 18" | 457.20 | 4.19 | 4.78 | 6.35 | 7.92 | 11.13 | 9.53 | 14.27 | 9.53 | 19.05 | 12.7 | 23.83 | 12.7 | 29.36 | 34.93 | 39.67 | 45.24 | |
| 500 | 20" | 508.00 | 4.78 | 5.54 | 6.35 | 9.53 | 12.7 | 9.53 | 15.09 | 9.53 | 20.62 | 12.7 | 26.19 | 12.7 | 32.54 | 38.1 | 44.45 | 50.01 | |
| 550 | 22" | 558.80 | 4.78 | 5.54 | 6.35 | 9.53 | 12.7 | 9.53 | 22.23 | 12.7 | 28.58 | 34.93 | 41.28 | 47.63 | 53.98 | ||||
| 600 | 24" | 609.60 | 5.54 | 6.35 | 6.35 | 9.53 | 14.27 | 9.53 | 17.48 | 9.53 | 24.61 | 12.7 | 30.96 | 12.7 | 38.89 | 46.02 | 52.37 | 59.54 | |
| 650 | 26" | 660.40 | 7.92 | 12.7 | 9.53 | 12.7 | |||||||||||||
| 700 | 28" | 711.20 | 7.92 | 12.7 | 15.88 | 9.53 | 12.7 | ||||||||||||
| 750 | 30" | 762.00 | 6.35 | 7.92 | 12.7 | 15.88 | 9.53 | 12.7 | |||||||||||
| 800 | 32" | 812.00 | 7.92 | 12.7 | 15.88 | 9.53 | 17.48 | 12.7 | |||||||||||
| 850 | 34" | 863.60 | 7.92 | 12.7 | 15.88 | 9.53 | 17.48 | 12.7 | |||||||||||
| 900 | 36" | 914.40 | 7.92 | 12.7 | 15.88 | 9.53 | 19.05 | 12.7 | |||||||||||
Standard:
| Standard | Classification | Main Products | Chemical Composition (Typical %) | Mechanical Properties (Typical) |
| ASTM A312 | TP304/TP304L | Seamless stainless steel pipe | C ≤ 0.08, Cr 18-20, Ni 8-12 | Tensile strength ≥ 515 MPa, Yield strength ≥ 205 MPa |
| ASTM A213 | TP316/TP316L | Seamless and welded pipes | C ≤ 0.03, Cr 16-18, Ni 10-14, Mo 2-3 | Tensile strength ≥ 485 MPa, Yield strength ≥ 170 MPa |
| ASTM A790 | S32205 / S32750 | Duplex super duplex seamless pipe | C≤0.03, Cr22/25, Ni5-7, Mo3-4 | Tensile ≥655MPa, Yield ≥450MPa |
| EN 10216-5 | 1.4307 / 1.4404 | EU standard seamless pipe | Euro standard 304L / 316L | EN standard mechanical values |

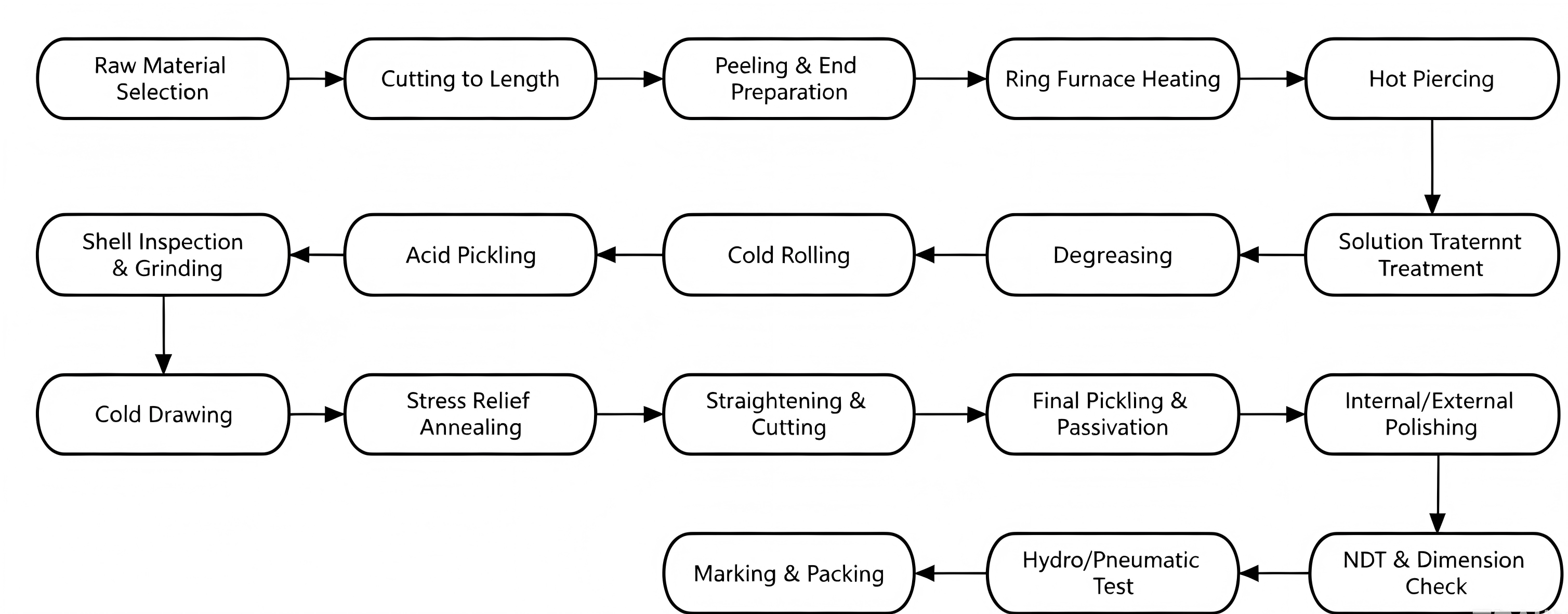

Process:
_1784893712.png)

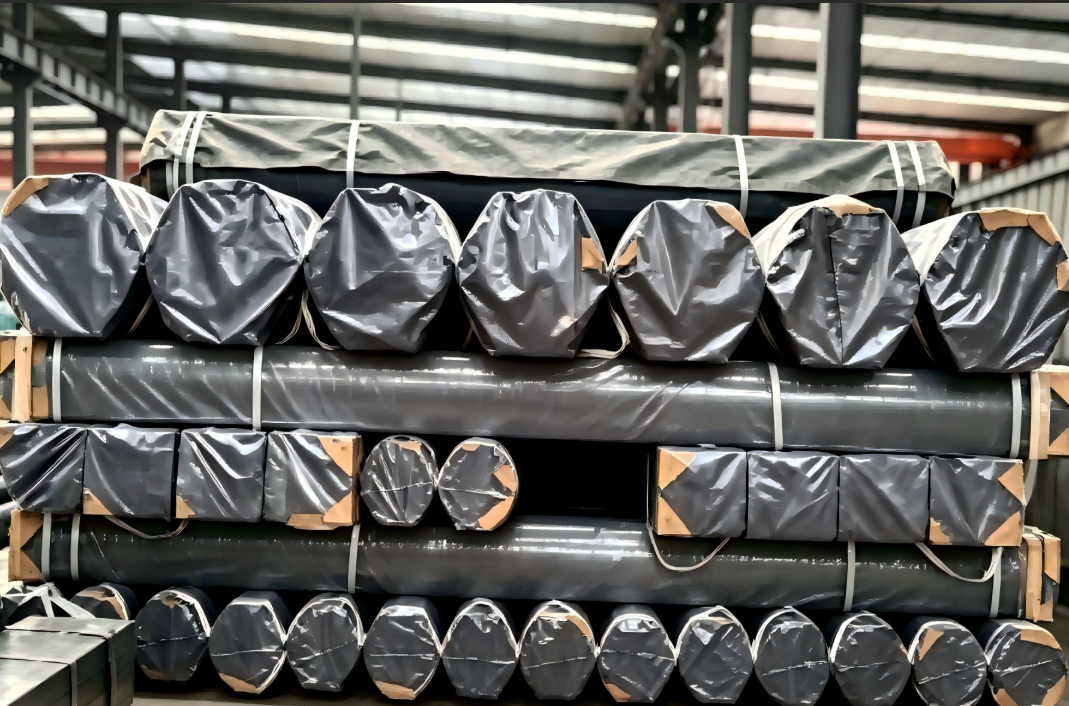

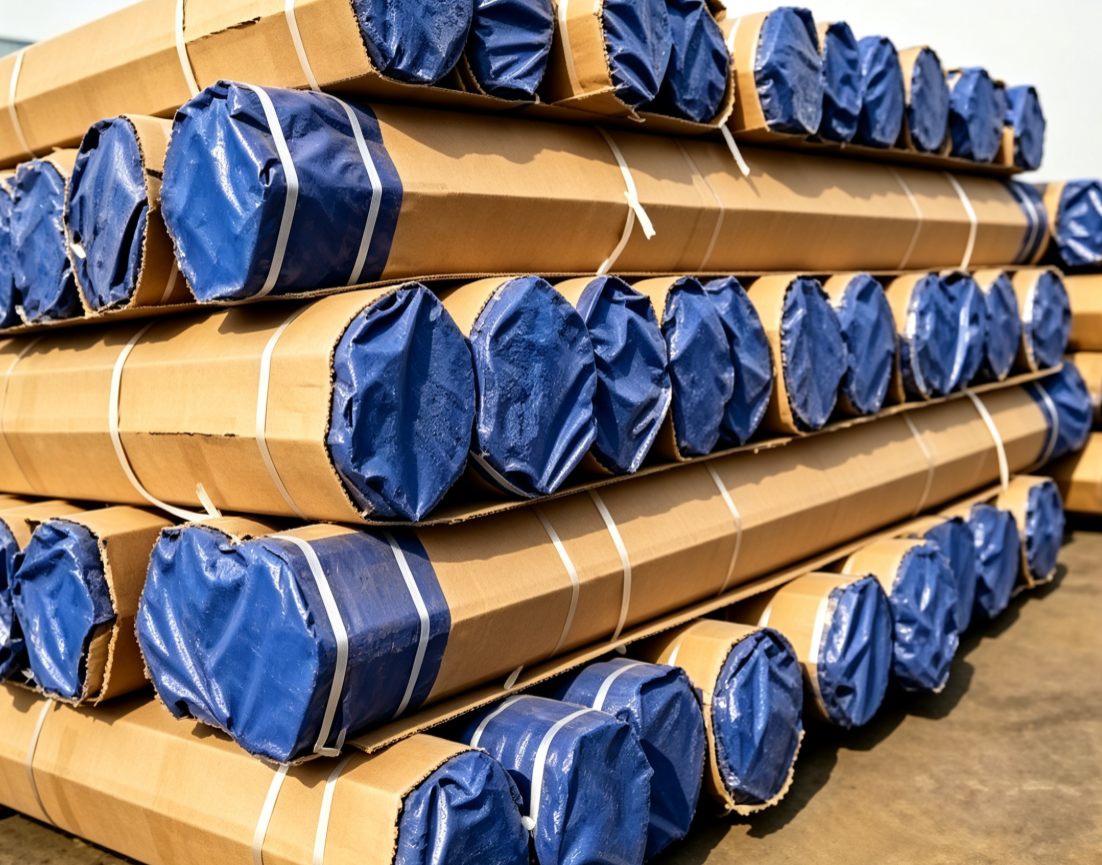

Packing:
