Tee
- Our pipe tees are forged or hot extruded from premium carbon steel, alloy steel and stainless steel, featuring stable high-pressure sealing and strong corrosion resistance. Available in equal tee, reducing tee, straight and branch types. Precision CNC machining ensures smooth inner bore and low flow resistance. Strict full-process quality control guarantees precise dimensions and reliable mechanical performance. Widely used in oil & gas, petrochemical, power, marine, water treatment and construction piping systems.
Certified:
All tees are supplied with complete factory test reports including chemical composition, mechanical property, dimensional check, NDT and hydrostatic test. Products comply with ISO, ASTM, ASME, DIN, EN and JIS standards. Material mill certificates EN 10204 3.1 / 3.2, third-party inspection certificates and full shipping documents can be provided on request to achieve full quality traceability for global industrial buyers.
Application:
Tees are critical three-way branch fittings for all industrial piping systems. In oil & gas transportation, they split and converge pipelines under high temperature and pressure for crude oil and natural gas delivery.
Petrochemical facilities adopt anti-corrosion tees to branch pipelines connected to reactors, storage tanks and corrosive medium delivery lines.
Thermal and nuclear power plants use high-temperature resistant tees for boiler circulation and steam pipe branch connections to sustain long-term extreme working environments. Marine and offshore projects apply seawater-resistant tees for fuel, ballast and fire-fighting pipe branches on ships and platforms. Water treatment and desalination plants match large-size tees for pump and filter pipeline distribution. In construction, tees are widely installed in HVAC, fire protection and plumbing systems for easy overhaul and pipe layout adjustment. Sanitary stainless steel tees are adopted in food and pharmaceutical workshops to meet strict hygiene standards without medium contamination.
Specification:
1. Product Specification
Parameter | Detailed Specification |
Product Type | Equal Tee, Reducing Tee, Straight Tee, Lateral Tee, Seamless Tee, Welded Tee |
Size Range | 1/2" – 60" (DN15 – DN1500), customized sizes available |
Pressure Rating | Class 150, 300, 600, 900, 1500, 2500 (PN20 – PN420) |
End Connection | BW Butt Weld, SW Socket Weld, NPT Threaded |
Manufacturing Process | Hot Extrusion, Hot Forging, Heat Treatment, CNC Machining |
Applicable Standards | ASME B16.9, ASME B16.28, MSS SP-75, DIN 2615, EN 10253, JIS B2312, GOST 17376, ISO 3419 |
Material Grades | Carbon Steel: A234 WPB, WP12, WP22 / Stainless Steel: 304, 304L, 316, 316L, 321, 904L / Alloy Steel: A234 WP5, WP9, WP11, WP91 |
2. Chemical Composition
Grade | C | Si | Mn | P | S | Cr | Ni | Mo |
A234 WPB | ≤0.30 | ≤0.35 | 0.29–1.06 | ≤0.035 | ≤0.035 | ≤0.40 | ≤0.40 | — |
WP11 | 0.05–0.15 | 0.50–1.00 | 0.30–0.60 | ≤0.030 | ≤0.030 | 1.00–1.50 | — | 0.44–0.65 |
WP22 | 0.05–0.15 | ≤0.50 | 0.30–0.60 | ≤0.030 | ≤0.030 | 2.00–2.50 | — | 0.87–1.13 |
304 | ≤0.08 | ≤0.75 | ≤2.00 | ≤0.045 | ≤0.030 | 18.0–20.0 | 8.00–10.5 | — |
304L | ≤0.03 | ≤0.75 | ≤2.00 | ≤0.045 | ≤0.030 | 18.0–20.0 | 8.00–12.0 | — |
316 | ≤0.08 | ≤0.75 | ≤2.00 | ≤0.045 | ≤0.030 | 16.0–18.0 | 10.0–14.0 | 2.00–3.00 |
316L | ≤0.03 | ≤0.75 | ≤2.00 | ≤0.045 | ≤0.030 | 16.0–18.0 | 10.0–14.0 | 2.00–3.00 |
Grade | C | Si | Mn | P | S | Cr | Ni | Mo |
Standard:
Classification | Grade | Applicable Standard | Key Chemical Composition (wt%) | Key Mechanical Properties (Room Temperature) |
Carbon Steel | A234 WPB | ASTM A234 | C≤0.30, Mn 0.29~1.06, S≤0.035, P≤0.035 | TS≥415MPa, YS≥205MPa, EL≥22%, H≤156HB |
Low Alloy Steel | WP11 | ASTM A234 | C 0.05~0.15, Cr 1.00~1.50, Mo 0.44~0.65 | TS≥415MPa, YS≥205MPa, EL≥20%, H≤163HB |
WP22 | ASTM A234 | C 0.05~0.15, Cr 2.00~2.50, Mo 0.87~1.13 | TS≥415MPa, YS≥205MPa, EL≥20%, H≤163HB | |
Austenitic Stainless Steel | 304 | ASTM A403 | C≤0.08, Cr 18.0~20.0, Ni 8.00~10.5 | TS≥520MPa, YS≥205MPa, EL≥35%, H≤90HRB |
304L | ASTM A403 | C≤0.03,Cr 18.0~20.0, Ni 8.00~12.0 | TS≥480MPa, YS≥170MPa, EL≥35%, H≤90HRB | |
316 | ASTM A403 | C≤0.08, Cr 16.0~18.0, Ni 10.0~14.0, Mo 2.00~3.00 | TS≥520MPa, YS≥205MPa, EL≥35%, H≤90HRB | |
316L | ASTM A403 | C≤0.03, Cr 16.0~18.0, Ni 10.0~14.0, Mo 2.00~3.00 | TS≥480MPa, YS≥170MPa, EL≥35%, H≤90HRB |

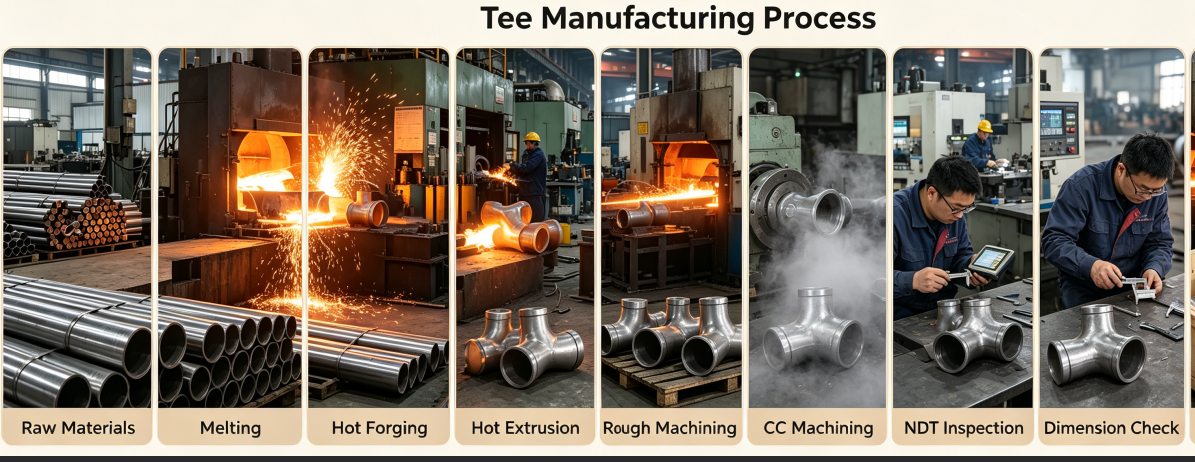

Process:

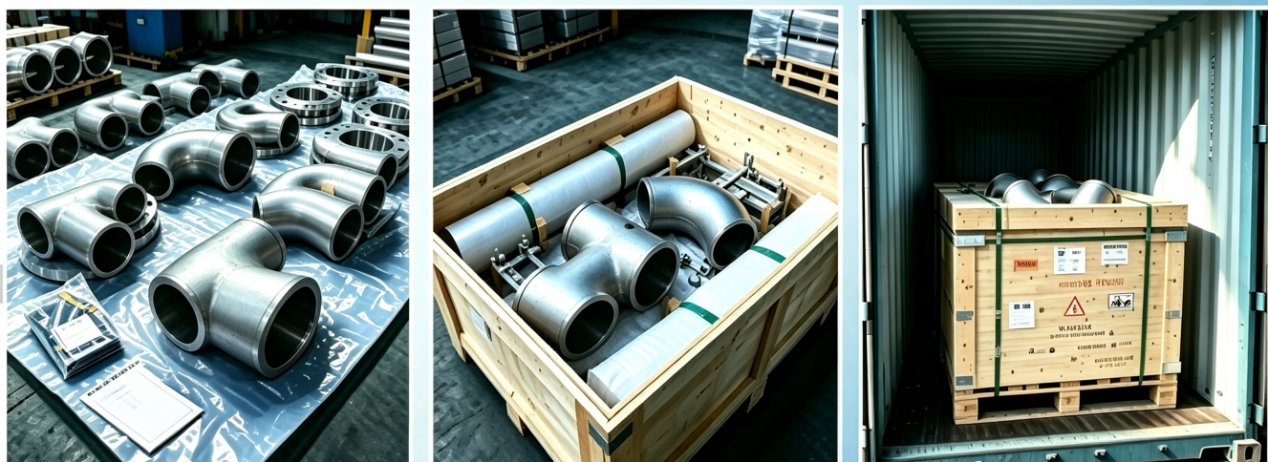

Packing:
