Angle Bar
- Our hot rolled angle steels consist of equal and unequal angles, produced from premium carbon, alloy and stainless steel with precise tolerances and stable 90° L-shaped profiles. Equal angles with identical leg widths deliver balanced load capacity, while unequal angles suit asymmetric loads and special connecting applications. Surface options include black hot rolled, galvanized, pickled and polished finishes. Through rigorous rolling, straightening and comprehensive inspections, our angles achieve reliable straightness, flatness and mechanical properties. They are widely used in construction, machinery, transportation, solar brackets and global metal fabrication projects.
1. Equal Angle Steel
Certified
All equal angle steel is supplied with EN 10204 3.1 mill test certificates covering chemical composition, tensile, hardness and dimensional test. Comply with ASTM, EN, JIS, GB standards. Support SGS & BV third-party inspection, full heat number traceability for global metal buyers.
Application
Equal angle steel is standard L-shaped structural profile for construction, machinery and logistics industries. In building projects, it is widely used for solar mounting racks, factory wall keels, roof supports and warehouse storage frame reinforcements. Low carbon grades S235JR, A36 and SS400 own outstanding seismic performance for multi-story steel buildings. High strength Q355B equal angle fits heavy load workshop support frames. Mechanical factories process it into equipment bases and agricultural machinery brackets. Galvanized equal angle can resist rust for coastal outdoor projects. It can be cut, punched and welded on site for various engineering connection parts.
Specification
1. Product Specification
Parameter | Detailed Specification |
Product Type | Hot Rolled Equal Angle Steel Bar |
Size Range | 20×20mm – 200×200mm |
Thickness | 3mm–25mm, customizable |
Length | 6m,9m,12m, customized cutting available |
Manufacturing Process | Hot Rolled, Straightened, Saw Cut |
Applicable Standards | ASTM A36, EN 10025, JIS G3192, GB/T 706 |
Material Grades | A36, S235JR, SS400, Q355B |
2. Chemical Composition
Grade | C | Si | Mn | P | S | Cr | Ni | Mo |
A36 | ≤0.29 | 0.15-0.40 | 0.80-1.20 | ≤0.040 | ≤0.050 | ≤0.15 | ≤0.20 | - |
S235JR | ≤0.17 | ≤0.35 | ≤1.40 | ≤0.045 | ≤0.045 | ≤0.30 | ≤0.30 | - |
SS400 | ≤0.21 | ≤0.35 | ≤1.50 | ≤0.045 | ≤0.045 | ≤0.20 | ≤0.20 | - |
Q355B | ≤0.24 | ≤0.55 | 1.00-1.60 | ≤0.035 | ≤0.035 | ≤0.30 | ≤0.30 | ≤0.10 |
Standard
Classification | Grade | Chemical Composition (wt%) | Mechanical Properties (Room Temperature) |
General Structural | A36 | C ≤0.29 Mn 0.80 ~ 1.20 Si 0.15~0.40 S ≤0.050 P ≤0.040 | TS ≥485MPa YS ≥250MPaE L ≥22% HB ≤187 |
S235JR | C ≤0.17 Mn ≤1.40 Si ≤0.35 S ≤0.045 P ≤0.045 | TS 360~510MPa YS ≥235MPaE L ≥26% HB ≤150 | |
SS400 | C ≤0.21 Mn ≤1.50 Si ≤0.35 S ≤0.045 P ≤0.045 | TS 400~510MPa YS ≥245MPaE L ≥21% HB ≤160 | |
High Strength | Q355B | C ≤0.24 Mn 1.00~1.60 Si ≤0.55 S ≤0.035 P≤0.035 Mo ≤0.10 | TS 470~630MPa YS ≥355 MPaE L ≥21% HB ≤180 |
2. Unequal Angle Steel
Certified
All unequal angle steels are delivered with complete mill test reports including chemical composition, tensile strength, yield strength, elongation, hardness, flatness and dimensional inspection. They meet ASTM, EN, DIN, JIS and ISO standards. EN 10204 3.1 / 3.2 test reports and third-party inspection certificates can be provided upon request.
Application
Unequal angle steel is widely used in construction, machinery, transportation and metal fabrication. In building structures, it is used for asymmetric load supports, beam connections, column brackets, wall reinforcements and roof truss components, where one leg may require larger bearing area than the other.
In machinery manufacturing, unequal angles are suitable for equipment bases, conveyor brackets, machine frames and chassis reinforcements, offering balanced strength under non-uniform loading conditions. Galvanized unequal angle steels are commonly used for outdoor supports, solar mounting structures, fence frames and coastal engineering components.
Stainless steel unequal angles are applied in food processing equipment, pharmaceutical machinery, chemical equipment and offshore facilities, requiring good corrosion resistance and stable dimensional accuracy. They are also used in municipal engineering, transportation infrastructure and custom metal fabrication projects.
Specification
1. Product Specification
Parameter | Detailed Specification |
Product Type | Hot Rolled Unequal Angle Steel, Galvanized Unequal Angle Steel, Stainless Unequal Angle Steel, Alloy Unequal Angle Steel, Pickled Unequal Angle Steel |
Size Range | 25×16mm – 200×125mm, customizable |
Thickness Range | 3mm – 25mm, customizable |
Standard Length | 3m, 6m, 12m or customized fixed length |
Section Feature | L-shaped cross section with unequal legs, nominal 90° angle, uneven width between two legs |
Surface Treatment | Black hot rolled, galvanized, pickled, polished, anti-rust oil coated, painted |
Manufacturing Process | Raw Material Melting & Continuous Casting → Slab Reheating → Hot Rolling → Unequal Angle Forming → Straightening → Fixed Length Cutting → Surface Treatment → NDT Inspection → Dimension & Hardness Test → Anti-rust Coating → Marking & Labeling → Packing |
Applicable Standards | ASTM A36, ASTM A276, EN 10025, EN 10056, DIN 1028, JIS G3101, ISO |
Material Grades | Carbon Steel: Q235B, Q355B, A36, S235JR, S355JRStainless Steel: 201, 304, 304L, 316, 316L, 321Alloy Steel: 16Mn, 4130, 4140 |
2. Chemical Composition
Grade | C | Si | Mn | P | S | Cr | Ni | Mo |
Q235B | ≤0.20 | ≤0.35 | ≤1.40 | ≤0.045 | ≤0.050 | - | - | - |
Q355B | ≤0.20 | ≤0.50 | 1.00–1.60 | ≤0.035 | ≤0.035 | - | - | - |
S235JR | ≤0.17 | ≤0.35 | ≤1.40 | ≤0.040 | ≤0.040 | - | - | - |
S355JR | ≤0.24 | ≤0.55 | 0.90–1.60 | ≤0.035 | ≤0.035 | - | - | - |
304 | ≤0.08 | ≤0.75 | ≤2.00 | ≤0.045 | ≤0.030 | 18.0–20.0 | 8.00–10.5 | - |
316L | ≤0.03 | ≤0.75 | ≤2.00 | ≤0.045 | ≤0.030 | 16.0–18.0 | 10.0–14.0 | 2.00–3.00 |
Standard
Classification | Grade | Applicable Standard | Key Chemical Composition (wt%) | Key Mechanical Properties |
Carbon Structural Steel | Q235B | GB/T 700 | C ≤0.20 Mn ≤1.40 S ≤0.050 P ≤0.045 | TS ≥370MPa YS ≥235MPa EL ≥26% |
High Strength Structural Steel | Q355B | GB/T 1591 | C ≤0.20 Mn 1.00–1.60 S ≤0.035 P ≤0.035 | TS ≥470MPa YS ≥355MPa EL ≥21% |
European Structural Steel | S235JR | EN 10025-2 | C ≤0.17 Mn ≤1.40 S ≤0.040 P ≤0.040 | TS 360–510MPa YS ≥235MPa EL ≥26% |
European Structural Steel | S355JR | EN 10025-2 | C ≤0.24 Mn0.90–1.60 S ≤0.035 P ≤0.035 | TS 470–630MPa YS ≥355MPa EL ≥22% |
Austenitic Stainless Steel | 304 | ASTM A276 | C ≤0.08 Cr 18.0–20.0 Ni 8.0–10.5 | TS ≥520MPa YS ≥205MPa EL ≥35% |
Low Carbon Stainless Steel | 316L | ASTM A276 | C ≤0.03 Cr 16.0–18.0 Ni 10.0–14.0 Mo 2.0–3.0 | TS ≥480MPa YS ≥170MPa EL ≥40% |
Unequal Angle and Equal Angle Process

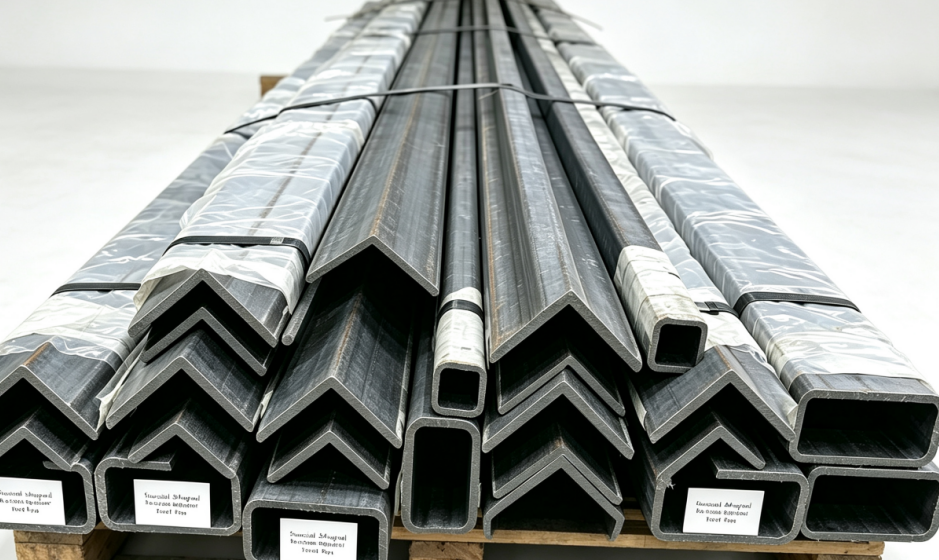

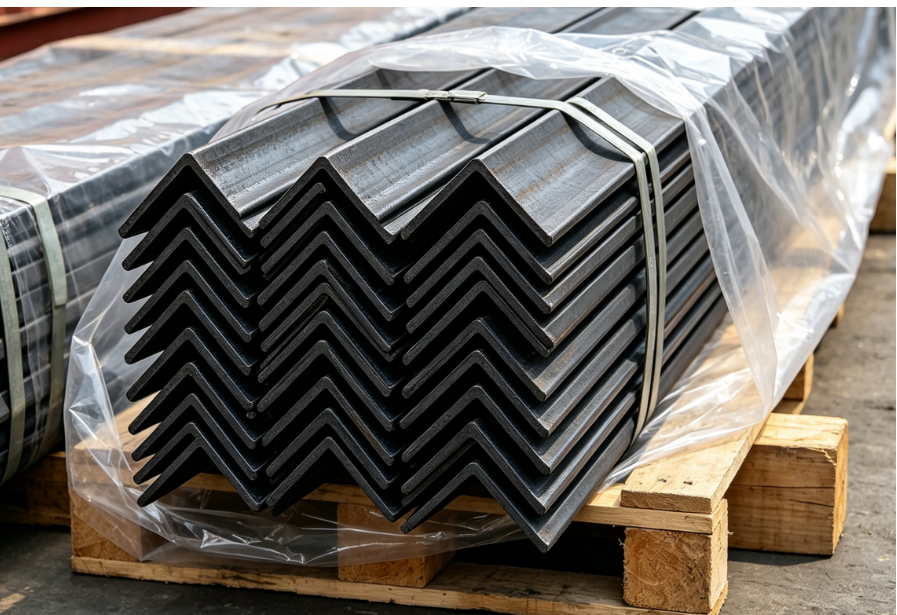

Unequal Angle and Equal Angle Packing
